Input Action Key Image
This widget allows you to display the image of the Key from the selected Input Action
and the image's Brush Texture can't be set manually
Create a Input Action Key Image
-

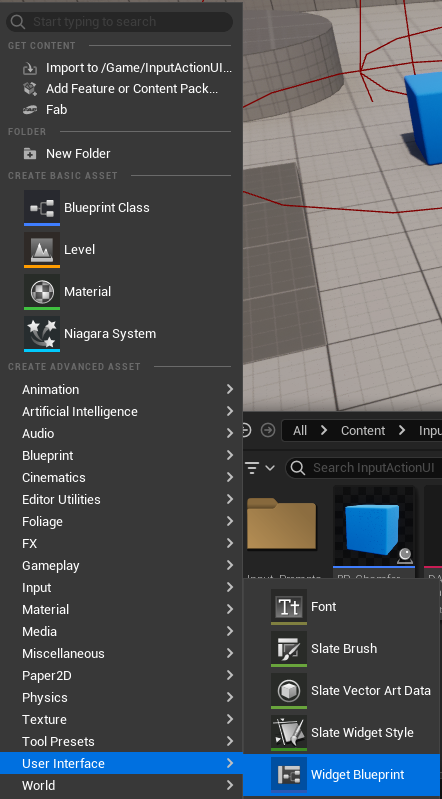

First, create a
User Widget Blueprint
-
Inside the

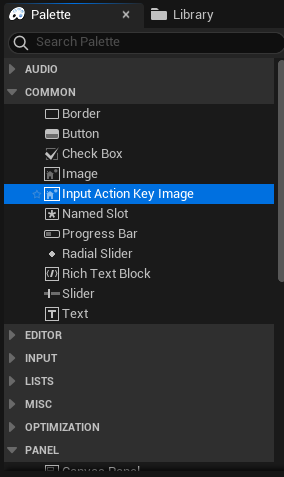

User Widget Blueprint, Create a Input Action Key Image

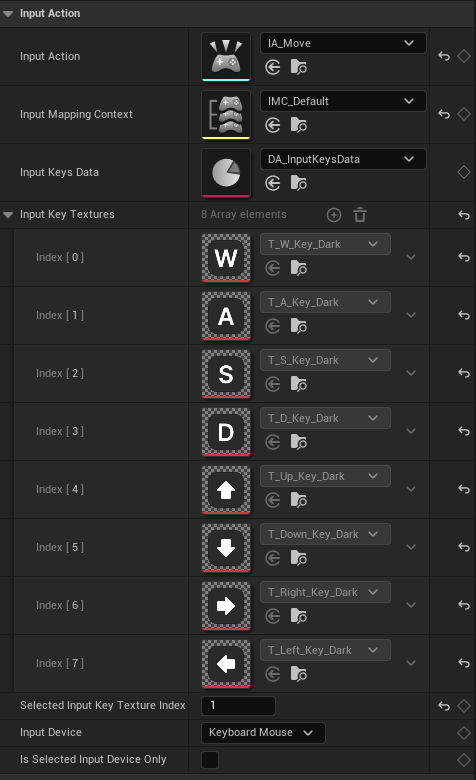

Input Action Key Image Properties
-
Input Action
The
Input Actionwhose mapped key's texture image will be shown.
-
Input Mapping Context
The
Input Mapping Contextwhere theInput Actionis defined. This is used to show the respective key's texture image.
-
Input Keys Data
The data asset containing textures for all
Input Keys. If none is provided, create a data asset of type Input Keys Data.
-
Input Key Textures
Displays the textures of the keys mapped to the selected
Input Actionin theInput Mapping Context. Only shows the texture of the currently selectedInput Devicekeys.
-
Selected Input Key Texture Index
The index of the texture to display from the
Input Key Texturesarray. When the input device is set toKeyboard & Mouse, this setsKeyboard Mouse Input Key Image Index, and similarly forGamepadwhose value is set byGamepad Input Key Image Index.The index for both devices must be changed separately if the
Input ActionorInput Mapping Contextis changed.
-
Input Device
The
Input Deviceused to change the texture for each device. This is a cosmetic setting and cannot change at runtime except through internal methods that detect the currentInput Device.This helps the developer visualize the preferred key's texture in the editor.
-
Is Selected Input Device Only
If true, only shows the key texture for the
Input Deviceselected in the editor.If false, the
Input Devicewill change at runtime based on the device currently used by the player.
Blueprint Callable Functions
-

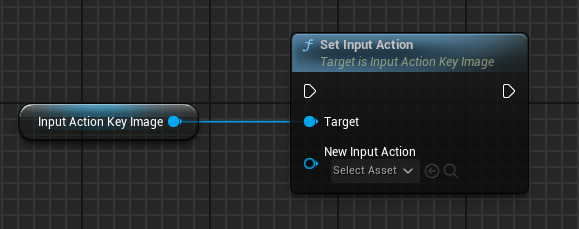

Set Input Action
-

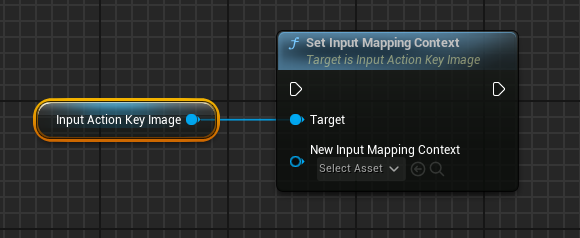

Set Input Mapping Context
-

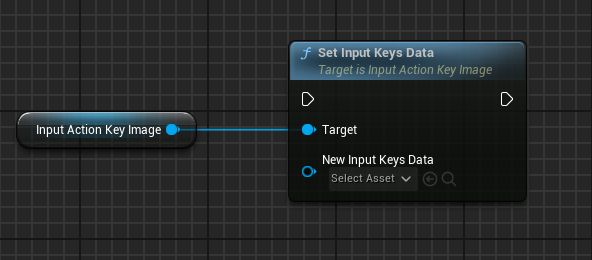

Set Input Keys Data
-

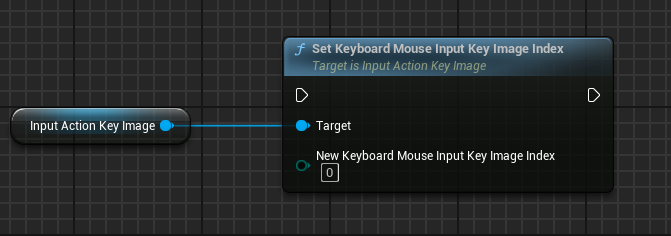

Set Keyboard Mouse Input Key Image Index
-

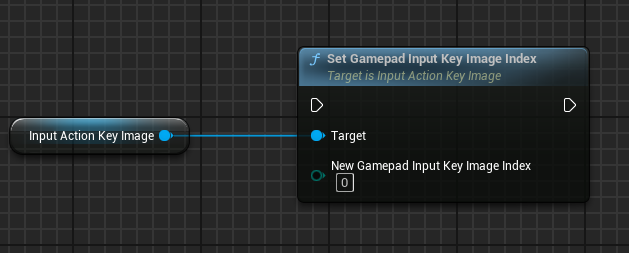

Set Gamepad Input Key Image Index
