Plugin Example

Overview

This example is focused to produce this result:

At first creating a Input Keys Data. To create a Input Keys Data:
- Right Click on the Content Browser
- Search for Data Asset
- Select Data Asset and Select Input Keys Data
An empty Input Keys Data is created. And now populate those textures of the corresponding keys. For this example, I am using this Key's Texture

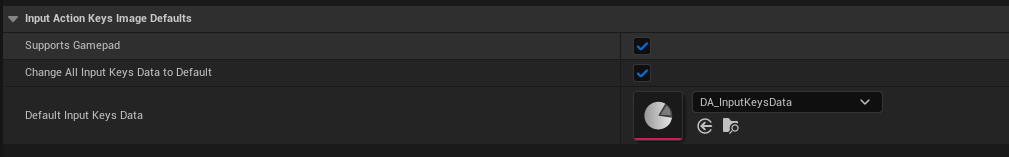

Edit >> Project Settings >> Plugins >> Input Action Keys Image

Setting	Value	Description
Supports Gamepad	true	Enables gamepad input for the project
Change All Input keys Data to Default	true	A single Input Keys Data will be used
Default Input Keys Data	Created Instance	Instance created in step 1

After creating the Input Keys Data, Now we can create a User WidgetBlueprint. For example, here I will name it WBP_InputActionKeyImageExample
After opening the WBP_InputActionKeyImageExample blueprint window, First add the Canvas Panel and then add the widget Input Action Key Image to the user widget.

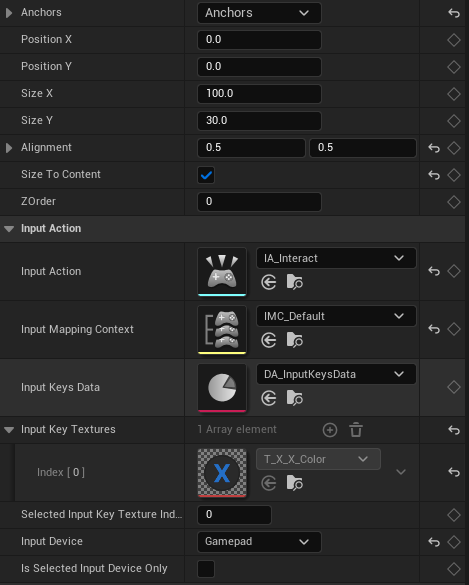

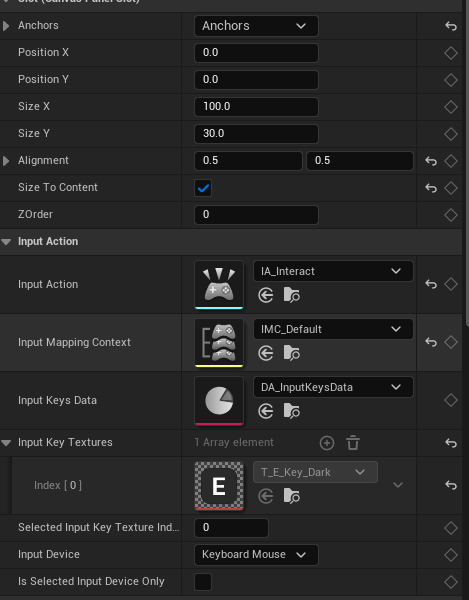

For this example, Setting the following values:

Setting	Value	Description
Anchors	Middle of the screen with both alignment and position	We want our image to be at the center
Size to Content	true	For making the size of the widget according to the texture
Input Action	IA_Interact	I want this image to be shown on the interactable objects
Input Mapping Context	IMC_Default	Since, the IA_Interact is defined in the `IMC_Default`
Input Keys Data	Set to Default Input Keys by default	Input Keys Data are stored in the given Input Keys Data instance created recently
Selected Input Key Texture Index	0 for both `Keyboard Mouse` and `Gamepad`	Select `Input Device` to `Gamepad` to change the index for `Gamepad`. Here using 0 because we have only one key mapped for each `Keyboard Mouse` and `Gamepad`
Is Selected Input Device Only	false	Since, this Input Action Key Image is gonna use both input devices i.e. `Keyboard Mouse` and `Gamepad`

Now for showing the Move hint where the Keyboard Mouse has 4 different keys WASD and Gamepad has only one key Left Joystick, we are gonna use Widget Switched on Input Device. So, to use the Widget Switched on Input Device, we will create a new User Widget Blueprint named WBP_WidgetSwitchedOnInputDeviceChangedExample.

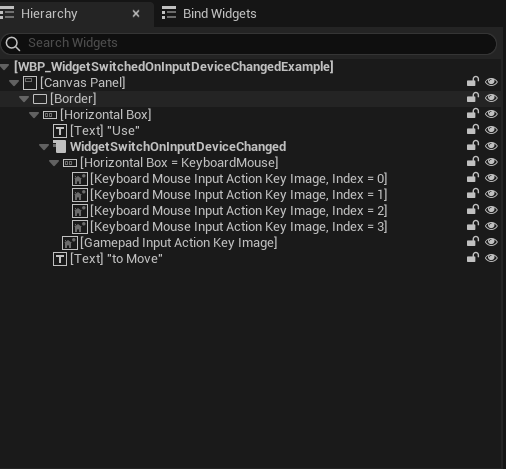

After opening WBP_WidgetSwitchedOnInputDeviceChangedExample, Add the followings in the respective order:

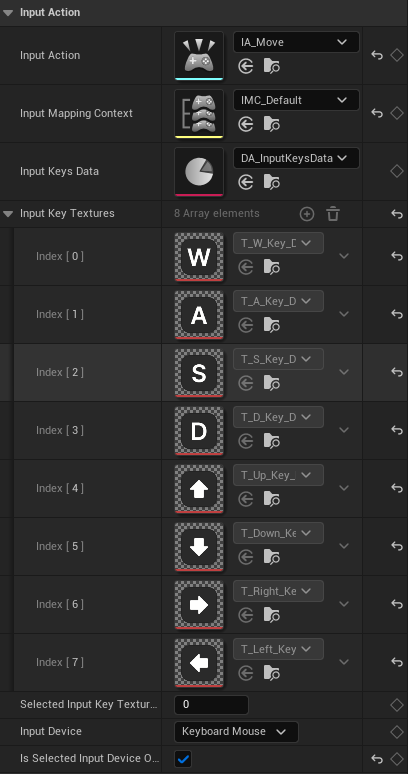

- Input Action Key Image Properties for Keyboard Mouse Input Device

  For the Selected Input Key Texture Index of Input Action Key Image inside the Horizontal Box = Keyboard Mouse, Use index in the order:
```
0 for W
1 for A
2 for S
3 for D
```

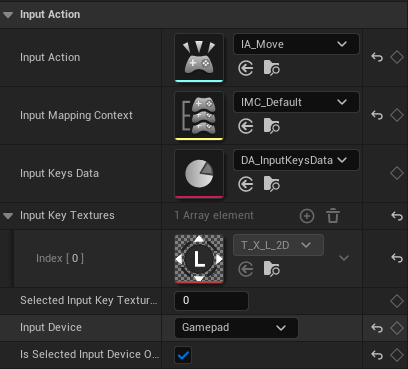

- Input Action Key Image Properties for Gamepad Input Device

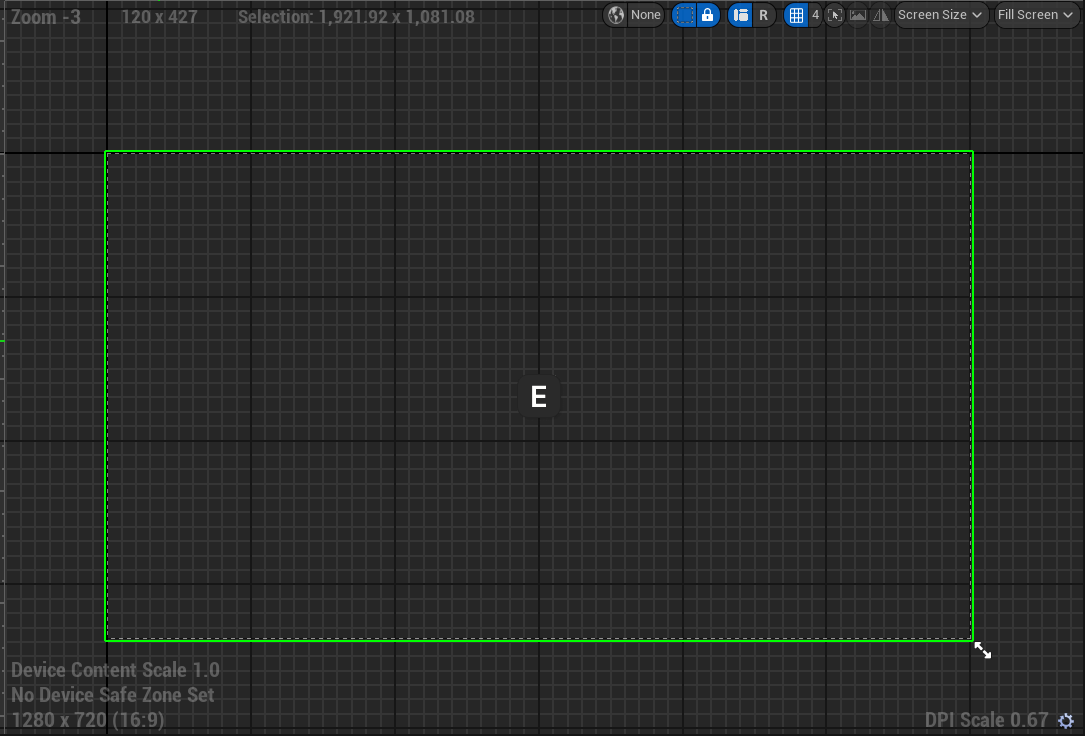

After integrating the WBP_InputActionKeyImageExample to a interatable object and the WBP_WidgetSwitchedOnInputDeviceChangedExample to the player screen, We can get the result:
- When the Input Device is Keyboard Mouse

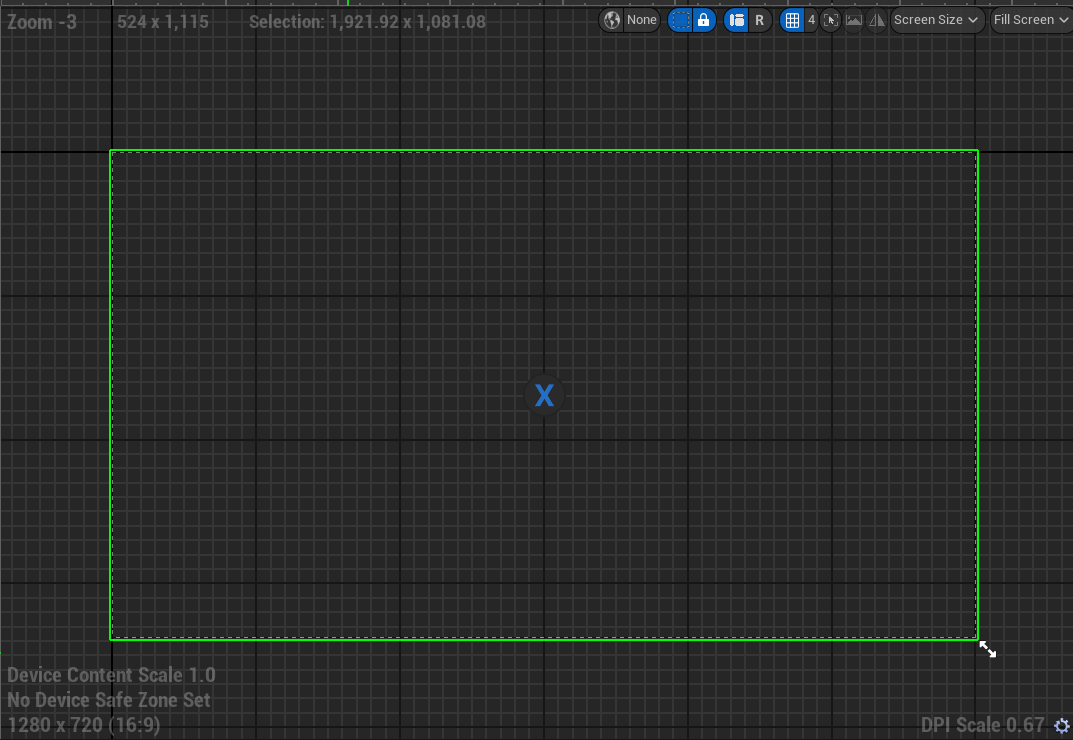

- When the Input Device is switched to Gamepad in runtime
